FIERYRED Electric Winch 4500LBS/2045kg 12V Synthetic Rope
Features
- Designed vehicle recovery only, particular for ATV, UTV.It is not only more efficient, but quieter as well.

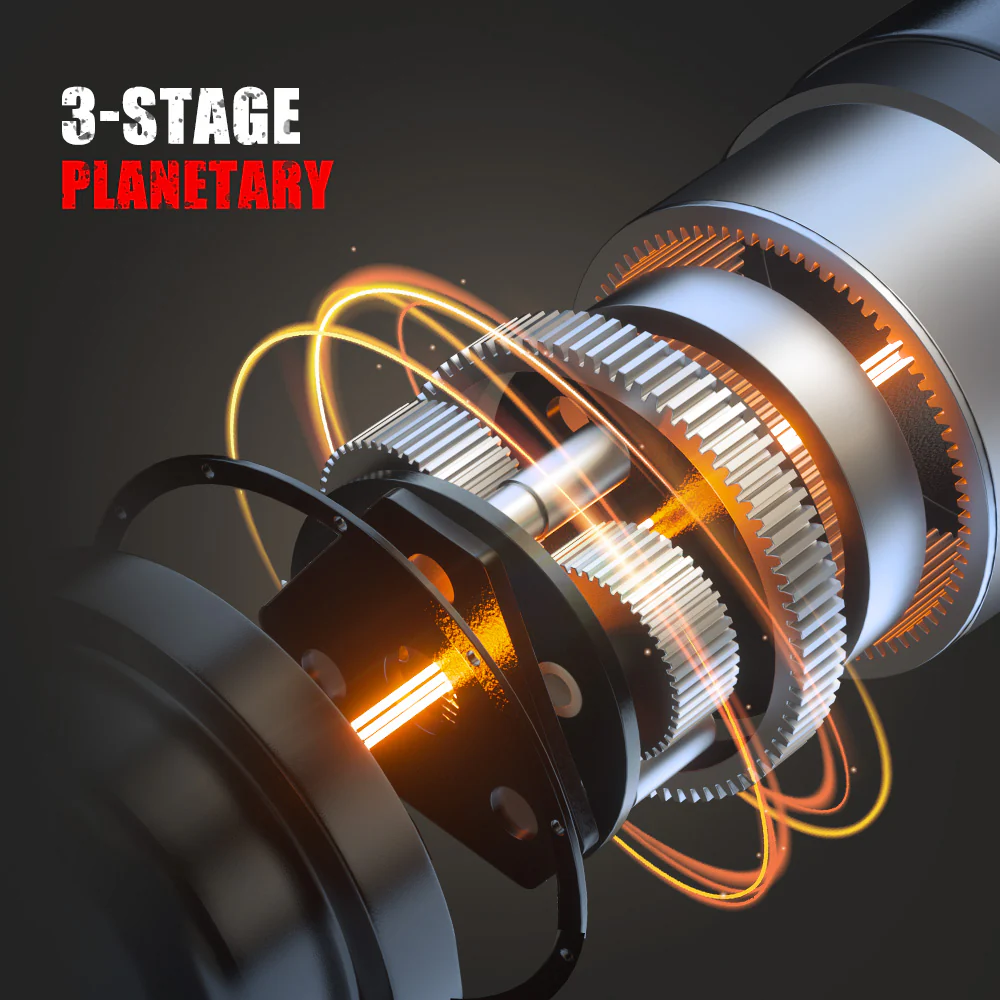

- Powerful sealed 1.9 HP motor and a full metal 3-stage planetary gear train that makes line speed faster under load.
- Equipped with a gear reduction ratio of 153:1 and a Three-stage planetary gear train, a guarantee for stronger pulling capacity.
- Designed for solid performance against corrosion and moisture, a great bonus for those living in rainy and stormy areas.
- Noted: Pls. connect two long wires to power supply,and connect two short wires to motor!
- This winch is designed only for pulling along a horizontal surface not for lifting a load under any circumstances. When winching, you should stop pull the wire rope when red colored warning appears.
- Do not operate the winch at an angle of more than 15°, because angles greater than this will deform or damage parts of the winch.

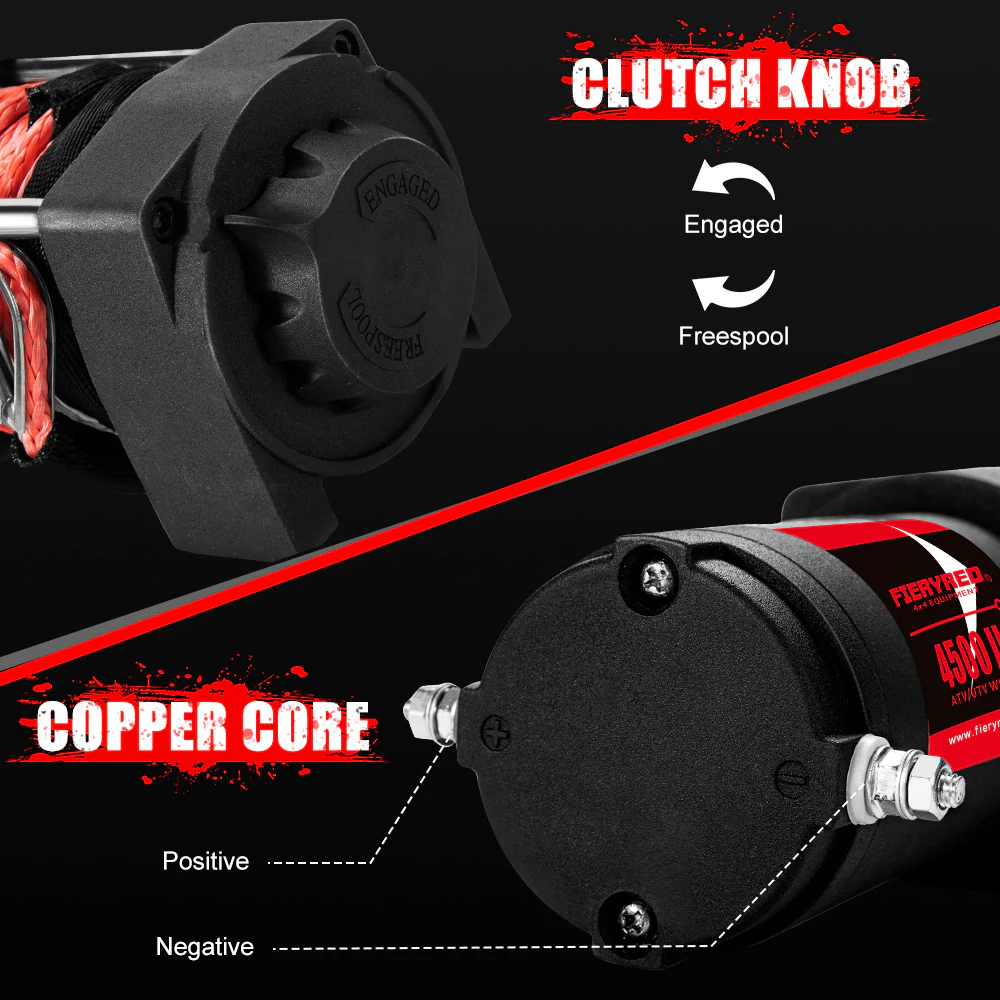

- When hoisting, the winching capacity is only 1/5 compared with pulling along a horizontal surface.Always ensure the clutch is fully engaged or disengaged. Failure to do so will significantly reduce winching capacity.
- It is highly recommended to use batteries of more than 80A. Failure to do so will also reduce the winching capacity.
- Note: Avoid angle pull.The winch line should not exceed a 15° up and down for horizontal,or a 45° angle left or right from straight ahead.
